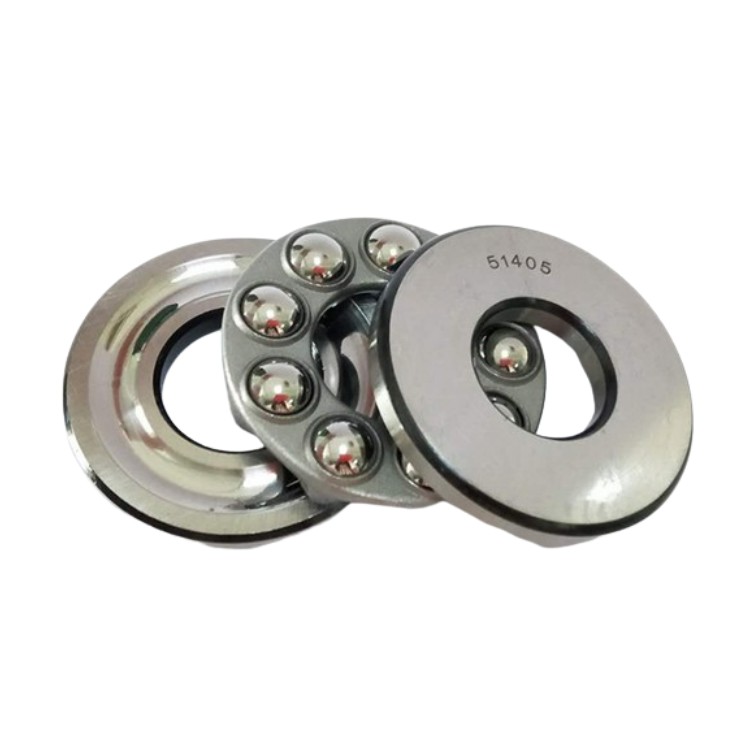

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
| d |
35 mm
|
Bore diameter |
|---|---|---|
| D |
62 mm
|
Outside diameter |
| H |
18 mm
|
Height |
| d1 |
≈62 mm
|
Outside diameter shaft washer |
| D1 |
≈37 mm
|
Inner diameter housing washer |
| r1,2 |
min.1 mm
|
Chamfer dimension washer |
" alt="Abutment dimensions - 51207" />| da |
min.51 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max.46 mm
|
Abutment diameter housing |
| ra |
max.1 mm
|
Fillet radius |
| Basic dynamic load rating | C |
35.1 kN
|
|---|---|---|
| Basic static load rating | C0 |
73.5 kN
|
| Fatigue load limit | Pu |
2.7 kN
|
| Reference speed |
4 000 r/min
|
|
| Limiting speed |
5 600 r/min
|
|
| Minimum load factor | A |
0.03
|
| d |
1.378 in
|
Bore diameter |
|---|---|---|
| D |
2.4409 in
|
Outside diameter |
| H |
0.7087 in
|
Height |
| d1 |
≈2.4409 in
|
Outside diameter shaft washer |
| D1 |
≈1.4567 in
|
Inner diameter housing washer |
| r1,2 |
min.0.0394 in
|
Chamfer dimension washer |
| da |
min.2.0079 in
|
Abutment diameter shaft |
|---|---|---|
| Da |
max.1.811 in
|
Abutment diameter housing |
| ra |
max.0.0394 in
|
Fillet radius |
| Basic dynamic load rating | C |
7 891 lbf
|
|---|---|---|
| Basic static load rating | C0 |
16 523 lbf
|
| Fatigue load limit | Pu |
607 lbf
|
| Reference speed |
4 000 r/min
|
|
| Limiting speed |
5 600 r/min
|
|
| Minimum load factor | A |
0.028
|
